Product range

Color measurement instruments.

Explore instrument features, key specifications and original product brochures. Confirm suitability for your application with the PHOENiX team.

Compact color measuring instrument

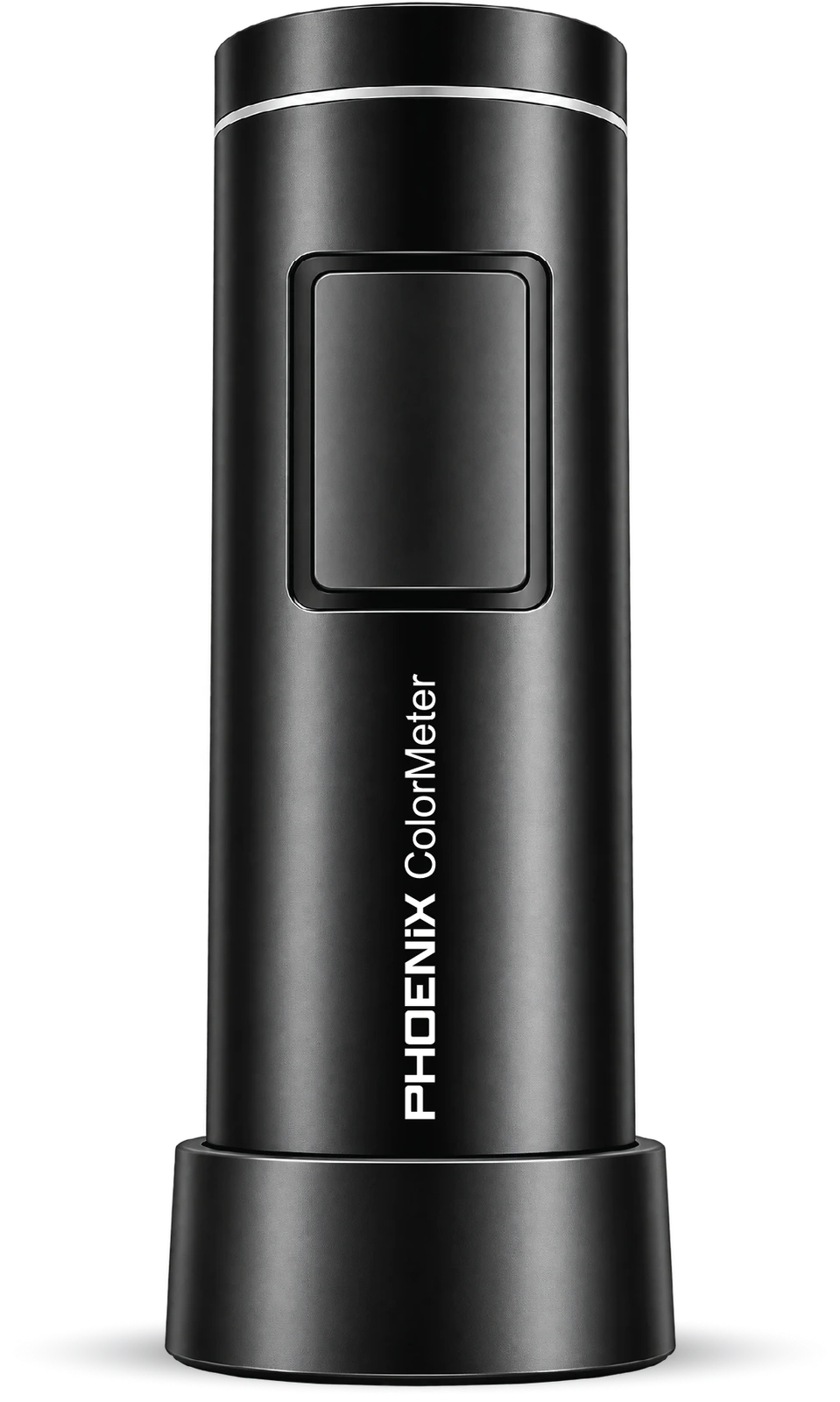

PHOENiX ColorMeter

Designed for portable color measurement and analysis, with spectral reflectance readings, automatic calibration and supported color spaces and indices for quality-control workflows.

Measurement geometryD/8, SCI

Wavelength range400–700 nm

Measurement apertureØ 8 mm

Measurement timeApprox. 1 sec

RepeatabilityΔE ≤ 0.05*

Device weightApprox. 90 g

Color spaces include CIE L*a*b*, CIE L*C*h°, Hunter Lab, CIE L*u*v*, XYZ, Yxy, RGB and Munsell.
Supports spectral reflectance and multiple color-difference, whiteness, yellowness and additional indices.
USB connectivity and operation with supported Android, iOS and Windows workflows.
Automatic calibration and connected or standalone operation as described in the product brochure.

View ColorMeter Brochure ↗Download PDF ↓Ask About This Product

*Repeatability is manufacturer-stated under the test conditions described in the brochure.

Multifunctional spectrophotometer

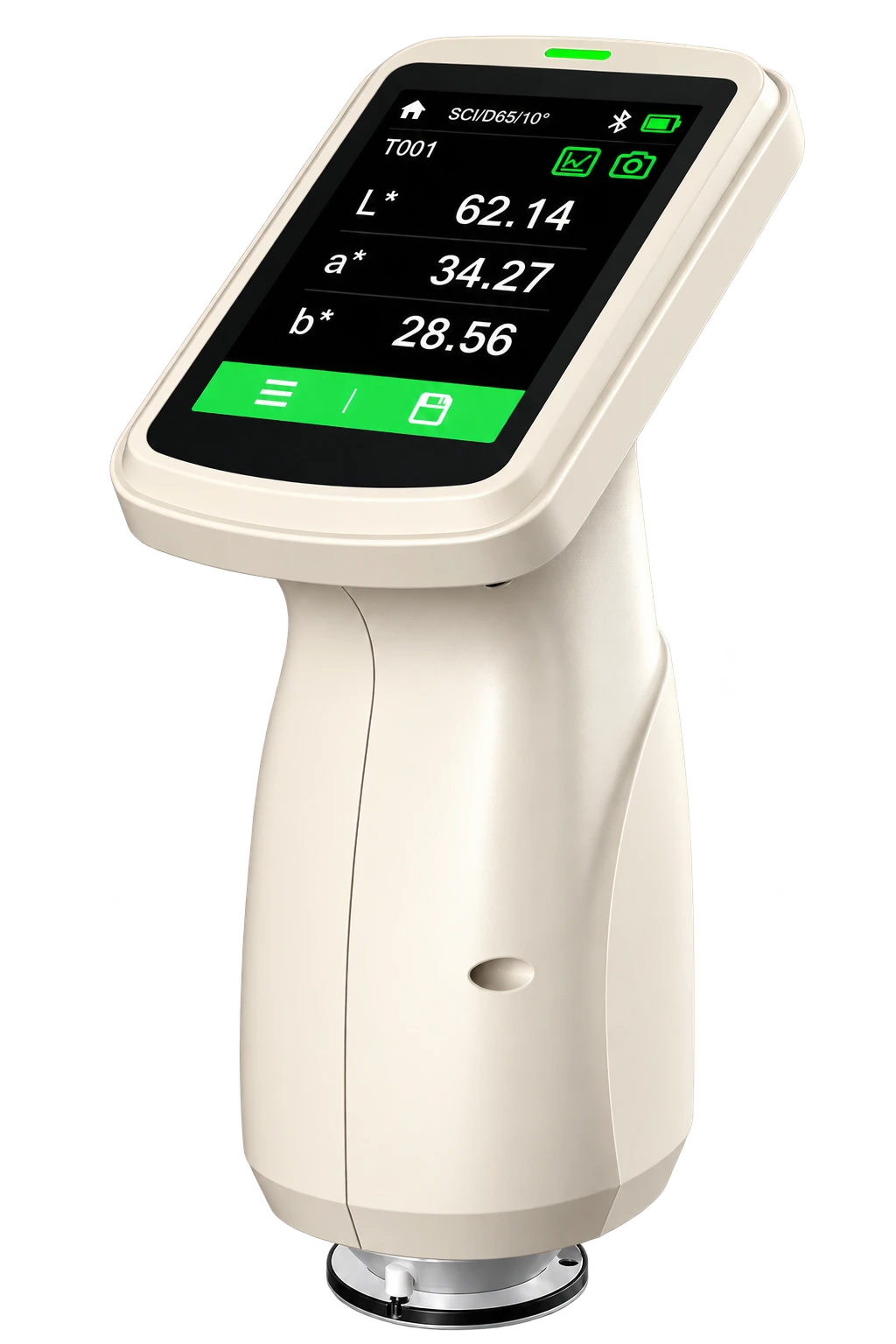

PHOENiX SpectroPro

A multifunctional instrument with D/8 SCI geometry, switchable UV on/off measurement for fluorescent analysis workflows, and a large 11 mm aperture.

Measurement geometryD/8, SCI

Wavelength range400–700 nm

Measurement apertureØ 11 mm

Measurement timeApprox. 1 sec

RepeatabilityΔE*ab ≤ 0.03*

Onboard recordsUp to 10,000

Switchable UV source for comparing UV-on and UV-off readings in suitable fluorescent-material workflows.
Supports multiple illuminants and 2°/10° standard observers.
Includes supported color spaces, color difference, whiteness, yellowness, blackness, density and opacity indices.
Standalone color matching, customizable color-card libraries and Windows software are described in the brochure.

View SpectroPro Brochure ↗Download PDF ↓Ask About This Product

*Repeatability is manufacturer-stated under the test conditions described in the brochure.

Specifications shown here are a summary of the supplied product brochures. Please consult the original PDF for complete conditions, supported indices and standards. Product suitability depends on sample type, preparation and measurement method.
